Xpert RC Low Profile PM-3402 All Aluminum Case Servo

SKU:
PM-3402

Log in for pricing

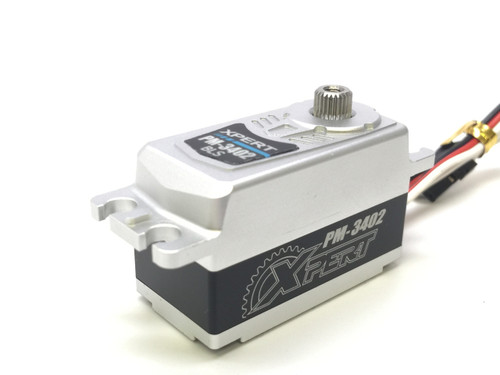

This is the Xpert PM-3402 Low Profile Full Aluminum Servo

Features

  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 200+ oz-in torque
  • Full aluminum case design
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant



Specifications

  • Power Supply: 4.8~6.6V
  • Speed (sec/ 60°):
    • @4.8V: .087 sec/60°
    • @6.0V: .070 sec/60°
    • @6.6V: .063 sec/60°
  • Torque (oz/in):
    • @4.8V: 166.56 oz-in
    • @6.0V: 208.20 oz-in
    • @6.6V: 229.02 oz-in
  • Torque (kg/cm):
    • @4.8V: 12.0 kg-cm
    • @6.0V: 15.0 kg-cm
    • @6.6V: 16.5 kg-cm
  • Dimensions: 40.8X20.2X26.8 mm
  • Weight: 52g
  • Frequency:200/333 Hz
  • Range: 50~400 Hz
  • Center Position: 1520us
  • Applications: 1/10 Buggy and Touring Car
  • Matching Gear Set: XGS71720
  • Matching Case: XC-02
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
