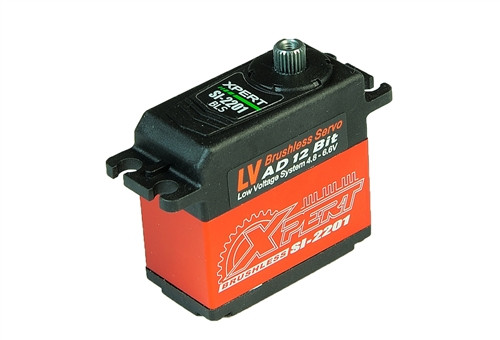

Xpert RC Standard SI-2201 Aluminum Case "Super Speed" Brushless Servo

SKU:
SI-2201

Log in for pricing

This is the Xpert SI-2201 Standard Size Aluminum Servo.

Features

  • Brushless motor design provides extremely high speed, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Aluminum middle case for optimized thermal dissipation.
  • Strong All Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant



Specifications

  • Power Supply: 4.8V~6.6V
  • Speed (sec/ 60°):
    • @4.8V: .050 sec/60
    • @6.0V: .040 sec/60
    • @6.6V: .036 sec/60
  • Torque (oz/in):
    • @4.8V: 73.98 oz-in
    • @6.0V: 92.44 oz-in
    • @6.6V:101.74 oz-in
  • Torque (kg/cm):
    • @4.8V: 5.33 kg-cm
    • @6.0V: 6.66 kg-cm
    • @6.6V: 7.33 kg-cm
  • Dimensions: 40x37.80x20 mm
  • Weight: 62.50g
  • Frequency: 200/333 Hz
  • Range: 50~400 Hz
  • Center Position: 1520 μs
  • Applications: Helicopter Rudder
  • Matching Gear Set: XGS7900
  • Matching Case: XP-01
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
