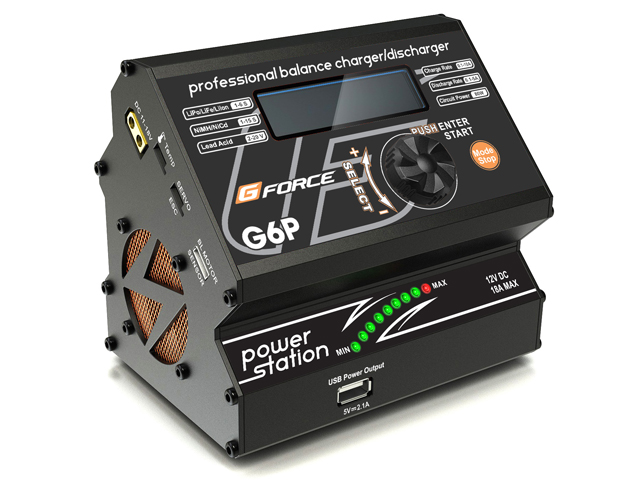

G-Force G6P AC Charger & Power Supply

SKU:
G0025

Log in for pricing

This is G-Force G6P AC Charger& Power Supply.




  Features

  • Active PFC Design: smaller AC input current, less interference, and conform to CE regulations
  • Three DC power outputs, total output power up to 18A ON/OFF switch
  • 9 LEDs indicate output power from minimum to maximum
  • Built-in USB power, 5V/2.1A for iPad, mobile phone, digital camera and etc
  • AC 100-240V worldwide operation
  • Smart cooling fan turned on upon the temperature automatically with low-noise
  • Over current and over temperature protection
  • Short-circuit protection on output, safe and reliable



Accessories

  • G6P AC Charger & Power Supply
  • XH Adaptor
  • Dean Connector with Banana Plug Cable
  • Tamiya Charging Cable
  • Tamiya LiFe conversion connector
  • DC Cable
  • AC Cable
  • Instraction manual



Power Specifications

Input Voltage(AC)

100-240V

Input Voltage(DC)

11-18V

Charge circuit power

80W

Stabilization power supply max power

12V / 18A

Charging current

0.1-10.0A

Discharge current

0.1-5.0A

USB output

5V/2.1A

NiCD/NiMH use possibility battery cells

1-15 Cell

LiPo/LiFe/Lilo use possibility battery cells

1-6 Cell

Pb battery use possibility voltage

2-20V

Dimension

141.2×123.2×101.5mm

Weight

1023g



Download USER MANUAL
